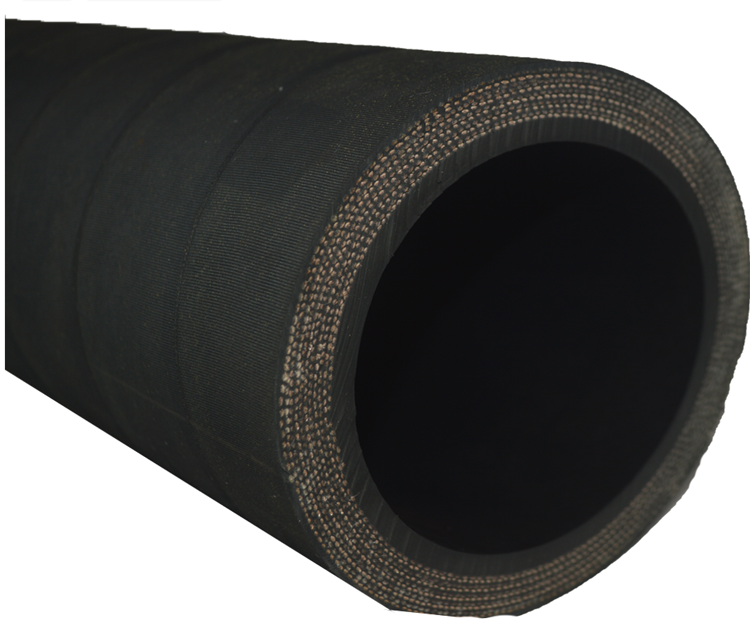

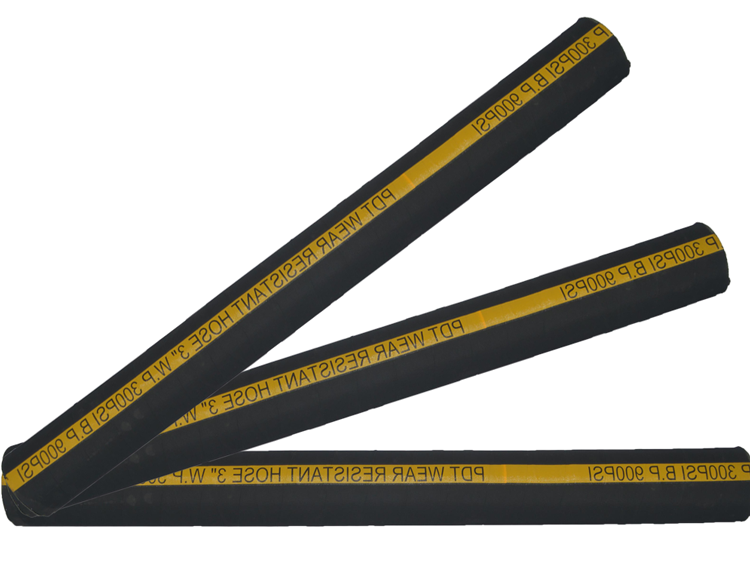

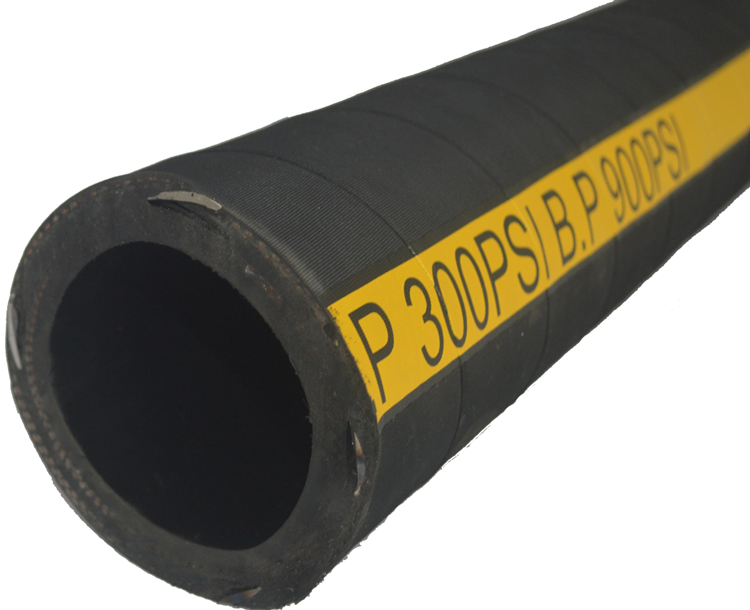

Concrete Placement Hose 85BAR / 1230PSI

Concrete Placement Hose is a heavy-duty hose uniquely formulated for pumping concrete, fireproofing, plaster, shotcrete and grout materials. This abrasion resistant heavy-wall pump hose is offered in a wide variety of sizes and end configurations. Also known as plaster-grout hose, or mud hose, concrete placement hose assemblies include full-flow internally expanded couplings. This coupling type prevents material build up around the inside hose shank and allows for higher shank retention and an increased working pressure rating. Large diameter placement hose assemblies include true bore crimp couplings.

Concrete Placement Hose Construction:

Tube: Black, smooth, Abrasion resistant NR/SBR compound

Reinforcement:

2”-3” : two steel wire braiding

3 1/2”-6” : four layers steel cords

Cover: Black, smooth cloth impression, NR/SBR compound abrasion cover, resistant to abrasion, cutting, gouging and weather.

Concrete Placement Hose Application:

High pressure concrete placement application.

Concrete Placement Hose Temperature:

-40℃ to +70℃(-40℉ to +158℉)

Concrete Placement Hose Characteristic:

●High abrasion resistant tube

●Abrasion loss value:DIN53516 70±5mm3

●Weather and ozone resistant cover

●Designed for high kink resistance and perfect flow


Material: Good quality materials make our hose steady performance.

Production: Advanced technology and equipment to make the best quality rubber concrete pump hose.

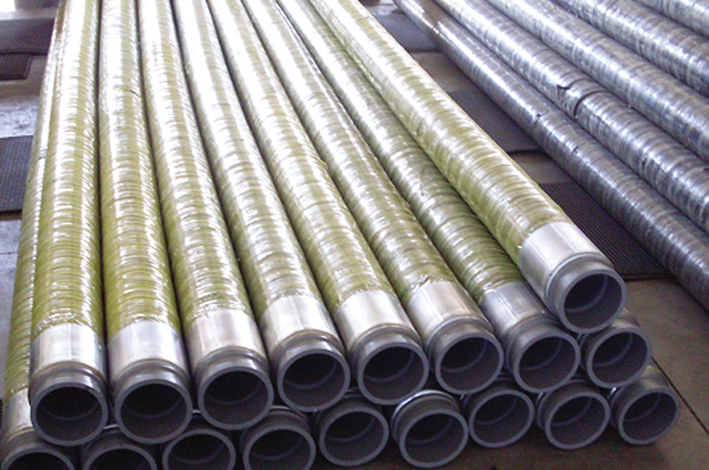

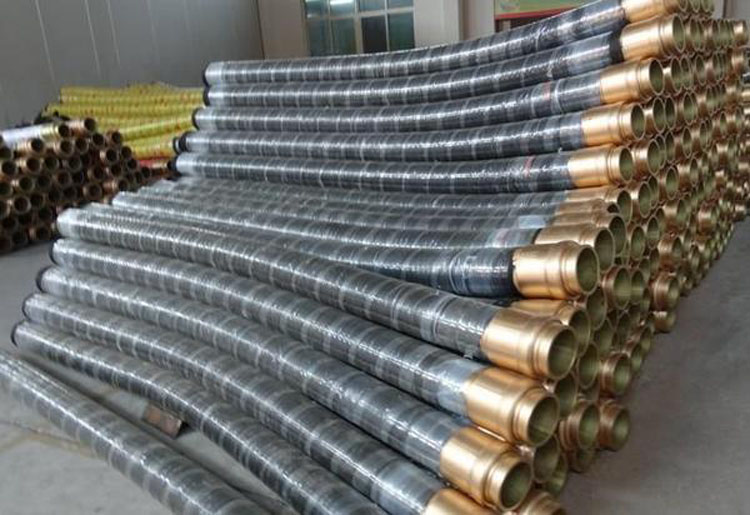

After finishing the concrete pump hose production, we will pack the hose.

In general, the packing will use woven bag and plastic film.

Special packing is available according to customers’ requirements.

1. ORIENTFLEX has a strong sales and service team of 20 people, with more than 10 years experience in foreign trade, to provide professional services for customer.

2. ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines, 15 high-speed steel wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines. We have introduced VP brand Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

3. Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material.

After the production, we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

We do everything possible to supply good quality goods for our customer.

4. ORIENTFLEX has three warehouses.

Our product has exported to over 30 countries, including the United States, Britain, Brazil, Russia and so on. and we participate in overseas exhibitions every year.
