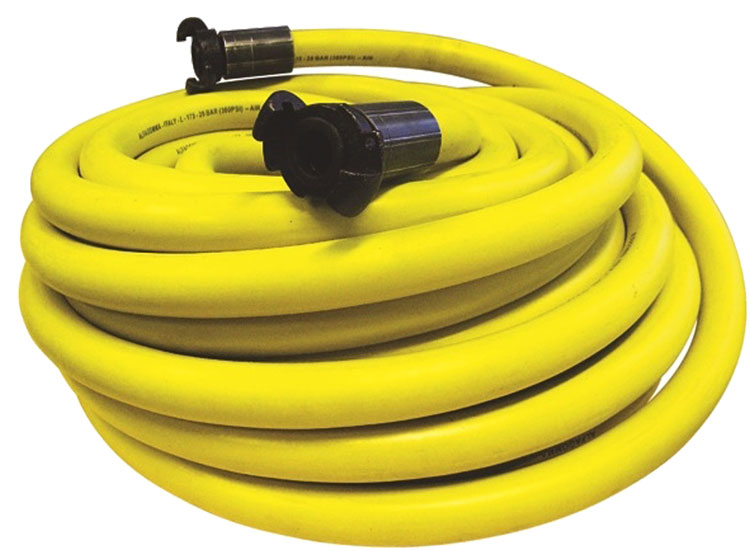

Textile Reinforced Air Hose

Heavy-duty, textile-reinforced air hoses with pressures of 300 PSI, 400 PSI, and 600 PSI are well-suited to rugged airline service in mining, quarries, construction, industrial air placement, and equipment rental applications, Mainly used as the connector between air compressor and other device. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black and smooth synthetic rubber, mainly NBR, which is resistant to abrasion, corrosion and oils. The reinforcement is made from multiple layers of high strength synthetic fiber, making the hose have solid structure. The cover is made from high quality black and smooth synthetic rubber, mainly chloroprene rubber, which is resistant to fire, abrasion, corrosion, oils, weather, ozone and aging. The hose has a long service life as a result.

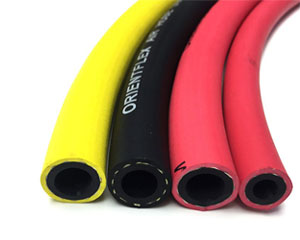

Textile Reinforced Air Hose Construction:

Tube: NR & SBR synthetic rubber, black color.

Reinforcement:1ply or 2ply high tensile polyester thread braiding

Cover: NR & SBR synthetic rubber, smooth or wrapped surfac, black, yellow, red available

Textile Reinforced Air Hose Application:

Mainly used for conveying of air, inert gas and water in mining, construction, engineering, shipbuilding, steel production etc.

Textile Reinforced Air Hose Temperature: -40℃(-104℉)to 70℃(+158℉)

Textile Reinforced Air Hose Characteristics:

Oil mist resistant tube

Anti-aging synthetic rubber

Weather and ozone resistant

Excellent abrasion resistance

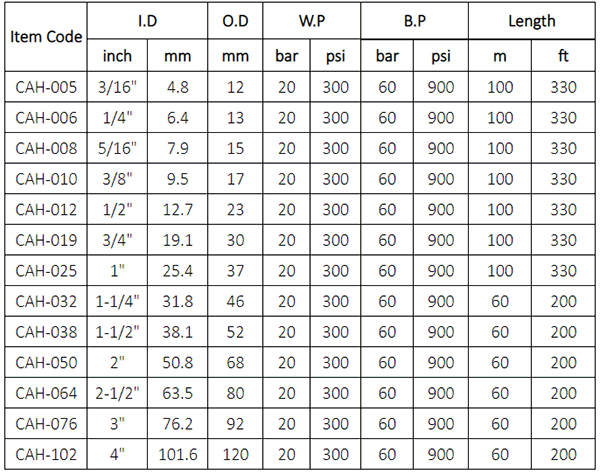

Air Hose Wrapped Surface 300PSI Specification:

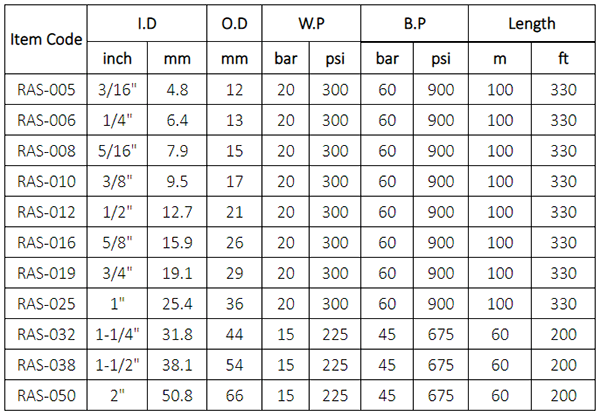

Air Hose Smooth Surface 300PSI Specification:

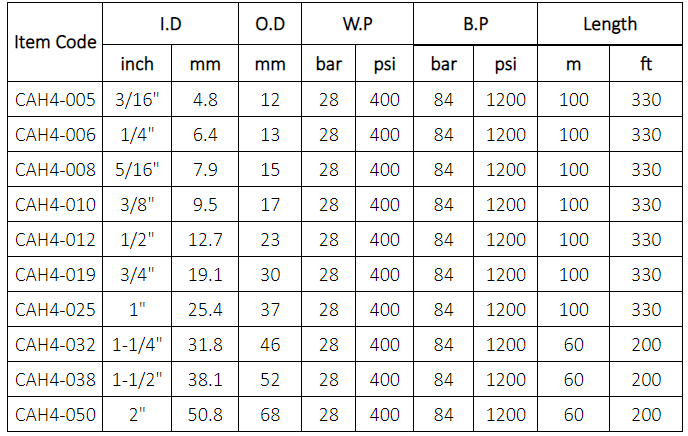

Air Hose Wrapped Surface 400PSI Specification:

Material: Good quality materials make our hose steady performance.

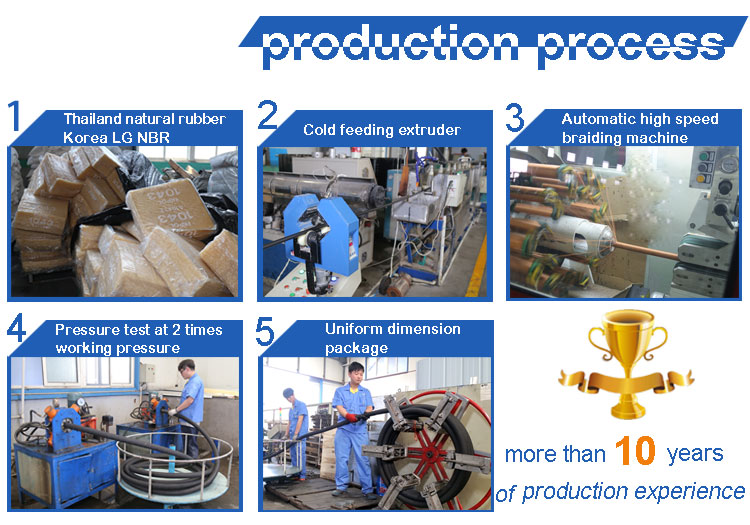

Production: Advanced technology and equipment to make the best quality rubber air hose.

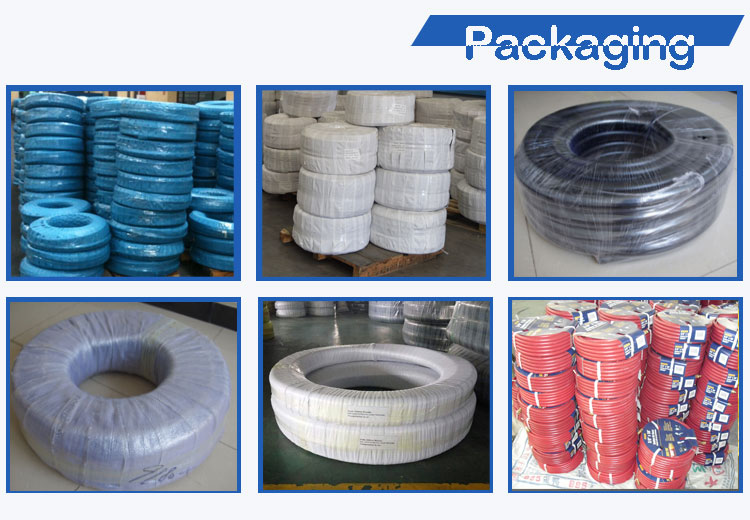

After finishing the air hose production, we will pack the hose.

In general, the packing will use woven bag and plastic film.

Special packing is available according to customers’ requirements.

1. ORIENTFLEX has a strong sales and service team of 20 people, with more than 10 years experience in foreign trade, to provide professional services for customer.

2. ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines, 15 high-speed steel wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines. We have introduced VP brand Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

3. Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material.

After the production, we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

We do everything possible to supply good quality goods for our customer.

4. ORIENTFLEX has three warehouses.

Our product has exported to over 30 countries, including the United States, Britain, Brazil, Russia and so on. and we participate in overseas exhibitions every year.
